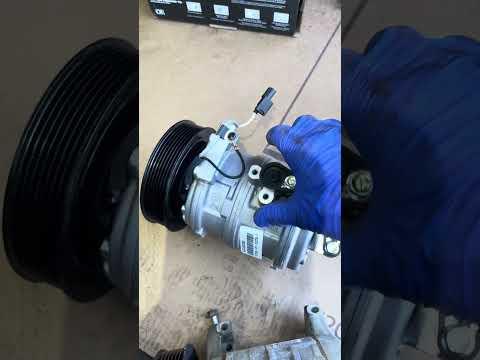

🔧 Accord - A/C Compressor Replacement

Replacing the A/C compressor on your Accord means removing the drive belt from the compressor, swapping the compressor unit, replacing the sealing O-rings, then properly evacuating and recharging the refrigerant. The “must-do” part is handling the refrigerant correctly—A/C work isn’t like coolant; the system must be vacuumed and recharged by weight to cool right and to avoid damage.

Difficulty Level: Advanced | Estimated Time: 3-5 hours (plus A/C machine time)

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant can cause severe frostbite and eye injury—wear safety glasses and gloves.
• ⚠️ Do not vent refrigerant to the air—have the system professionally recovered first.
• ⚠️ Support the car only on jack stands on level ground; never rely on a jack alone.
• ⚠️ Keep dirt out of open A/C lines—cap/plug lines immediately after disconnecting.
• 🔌 Disconnect the negative battery terminal to avoid accidental shorts at the compressor connector.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Wheel chocks
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Breaker bar 1/2"
• Torque wrench 3/8" drive (10-100 Nm range)
• Torque wrench 1/2" drive (40-200 Nm range)
• Socket set (8mm, 10mm, 12mm, 14mm, 17mm, 19mm)
• Ratchet 3/8" drive
• Extensions 3/8" drive (3" and 6")
• Wrench set (10mm, 12mm, 14mm)
• Serpentine belt tool 14mm
• Phillips screwdriver
• Trim clip removal tool
• Line caps/plug set (specialty)
• Drain pan
• A/C manifold gauge set (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• Refrigerant recovery machine (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor O-ring set - Qty: 1
• PAG A/C oil (ND-OIL 8 equivalent) - Qty: 1
• R-134a refrigerant - Qty: 18 oz (system charge by weight)
• A/C condenser desiccant bag - Qty: 1 (recommended whenever system is opened)

---

📋 Before You Begin

• Park on level ground, set the parking brake, and place wheel chocks behind the rear wheels.
• Have the refrigerant recovered before any line is opened (shop or recovery machine).
• Gather line caps/plugs so you can seal A/C lines immediately after disconnecting.
• Disconnect the battery using a 10mm socket: remove the negative (–) terminal and isolate it.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Recover the refrigerant (required)

• Use an A/C refrigerant recovery machine (specialty) to recover the system refrigerant completely.
• If you don’t have recovery equipment, have a shop recover the refrigerant first, then continue the mechanical steps at home.

Step 2: Raise the front of the car and remove the right front wheel

• Use a breaker bar 1/2" and 19mm socket to loosen lug nuts slightly.
• Lift using a floor jack (rated 3-ton minimum) and support with jack stands.
• Remove the wheel with a 19mm socket.
• Reinstall later: Torque to 108 Nm (80 ft-lbs).

Step 3: Remove the splash shields for access

• Remove the lower engine cover and right inner fender splash area using a trim clip removal tool, Phillips screwdriver, and 10mm socket.
• Keep clips/bolts organized so they return to the same locations.

Step 4: Remove the drive belt from the A/C compressor pulley

• Use a serpentine belt tool 14mm (a long handled wrench made to move the belt tensioner) to rotate the belt tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley only, and let it rest out of the way.
• Tip: Snap a belt-routing photo first.

Step 5: Disconnect the compressor electrical connector

• Locate the compressor connector and unplug it by hand.
• If the lock tab is tight, gently help it with a small flat screwdriver (do not break the tab).

Step 6: Disconnect the A/C lines from the compressor

• Place a drain pan under the compressor area.
• Use a 10mm socket to remove the suction/discharge line retaining bolts at the compressor manifold.
• Carefully pull the lines straight off (do not bend them).
• Immediately cap/plug the open lines and compressor ports using a line caps/plug set (specialty).
• During reassembly: Torque the line/manifold bolts to 12 Nm (9 ft-lbs).

Step 7: Unbolt and remove the compressor

• Support the compressor with one hand.
• Use a 12mm socket and ratchet 3/8" drive to remove the compressor mounting bolts.
• Lower the compressor out from underneath the car.
• During reassembly: Torque the compressor mounting bolts to 24 Nm (18 ft-lbs).

Step 8: Set the oil amount in the new compressor

• Drain the old compressor oil into a drain pan and measure how much came out.
• Add the same amount of PAG A/C oil (ND-OIL 8 equivalent) into the new compressor (follow the compressor instructions if it ships pre-filled).
• Slowly rotate the compressor hub by hand a few turns to distribute oil.
• Tip: Too much oil reduces cooling.

Step 9: Install new O-rings and reinstall the compressor

• Remove the old O-rings from the A/C line ends.
• Install new O-rings from the A/C compressor O-ring set.
• Lightly coat each O-ring with clean PAG A/C oil before assembly.
• Position the compressor and hand-start bolts, then tighten with a torque wrench: Torque to 24 Nm (18 ft-lbs).

Step 10: Reconnect A/C lines and electrical connector

• Remove caps/plugs and connect the lines straight onto the compressor.
• Install the line bolts with a 10mm socket, then tighten with a torque wrench: Torque to 12 Nm (9 ft-lbs).
• Reconnect the compressor electrical connector by hand until it clicks.

Step 11: Reinstall the belt and splash shields

• Use a serpentine belt tool 14mm to move the tensioner and slip the belt back onto the A/C compressor pulley.
• Visually confirm the belt is centered on every pulley.
• Reinstall splash shields using a 10mm socket, Phillips screwdriver, and trim clip removal tool.

Step 12: Evacuate (vacuum) the system and recharge by weight

• Connect an A/C manifold gauge set (specialty) to the high and low service ports.
• Connect a vacuum pump (specialty) and pull vacuum for 30–45 minutes.
• Close valves and verify vacuum holds (leak check) for about 10 minutes.
• Recharge with R-134a refrigerant using a refrigerant scale (specialty): Charge to 500 g (17.6 oz) by weight.
• If you don’t have vacuum/recharge equipment, have a shop perform the evacuation and recharge after you install the compressor.

Step 13: Reinstall the wheel and reconnect the battery

• Install the wheel and snug lug nuts with a 19mm socket.
• Lower the car and torque lugs using a torque wrench 1/2" drive: Torque to 108 Nm (80 ft-lbs).
• Reconnect the negative battery terminal using a 10mm socket.

---

✅ After Repair

• Start the engine and turn A/C to MAX; confirm the compressor engages and the center vent temperature drops.
• Check around the compressor manifold for oily residue or hissing (signs of a leak).
• Verify the belt runs smoothly with no squeal.
• If cooling is weak, the most common causes are incorrect charge amount or air/moisture left in the system (needs proper vacuum + weigh-in charge).

---

💰 DIY vs Shop Cost

Shop Cost: $1,100-$1,800 (parts + labor + evac/recharge)

DIY Cost: $350-$650 (parts only, assuming you outsource evac/recharge)

You Save: $450-$1,200 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 2.5-4.0 hours.

---
