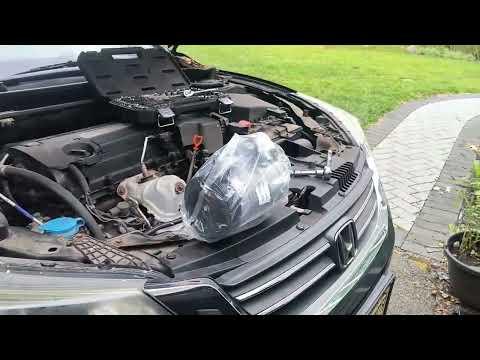

🔧 Accord - A/C Compressor Replacement

The A/C compressor is the pump that circulates refrigerant and oil through your A/C system. Replacing it is a mixed mechanical + refrigerant-handling job: you’ll remove the old compressor, install the new one with new seals, then evacuate and recharge the system so it cools correctly.

Difficulty Level: Advanced | Estimated Time: 3-6 hours

---

⚠️ Safety & Precautions

• ⚠️ Refrigerant must be recovered with proper equipment—do not vent to air.
• ⚠️ Wear safety glasses and gloves; liquid refrigerant can cause frostbite.
• ⚠️ Work on a cool engine; keep hands clear of the radiator fans.
• ⚠️ Disconnect the negative battery cable before unplugging compressor wiring.
• ⚠️ Keep the A/C system sealed; moisture ruins components.
• ⚠️ Support the car securely on jack stands before going underneath.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Nitrile gloves
• Floor jack (rated 3-ton minimum)
• Jack stands (rated 3-ton minimum)
• Wheel chocks
• Metric socket set 8mm-19mm
• 3/8" drive ratchet
• 3/8" drive torque wrench
• Serpentine belt tool 14mm
• Metric combination wrench set 10mm-19mm
• Line wrench set 10mm-17mm
• Phillips screwdriver
• Trim clip remover
• Pick tool
• Drain pan
• Shop rags
• A/C manifold gauge set for R-134a (specialty)
• Vacuum pump (specialty)
• Refrigerant scale (specialty)
• UV dye light (specialty)

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• A/C compressor - Qty: 1
• A/C compressor clutch relay - Qty: 1
• A/C line O-ring set (R-134a compatible) - Qty: 1
• Honda-approved A/C compressor oil (R-134a PAG, per under-hood label) - Qty: 1
• R-134a refrigerant (charge amount per under-hood label) - Qty: 1
• Serpentine belt - Qty: 1

---

📋 Before You Begin

• Park on level ground, set the parking brake, and chock the rear wheels.
• Have the refrigerant professionally recovered first, or use certified recovery equipment. Never crack lines “to see if pressure is there.”
• Disconnect the negative battery cable using a 10mm socket and secure it away from the terminal.
• Plan to keep all A/C openings capped; use clean rags or caps immediately after disconnecting lines.
• Assumption: Your Accord uses R-134a (check the under-hood A/C label for exact refrigerant and oil specs).

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Step 1: Raise and access the compressor

• Use a floor jack (rated 3-ton minimum) to lift the front of your Accord at the proper jacking point.
• Set it down on jack stands (rated 3-ton minimum) and confirm it’s stable.
• Remove the lower splash shield if equipped using a trim clip remover and Phillips screwdriver.

Step 2: Remove serpentine belt from the A/C compressor

• Locate the belt tensioner.
• Use a serpentine belt tool 14mm to rotate the tensioner and relieve belt tension.
• Slip the belt off the A/C compressor pulley and slowly release the tensioner. Take a quick photo of belt routing.

Step 3: Unplug compressor electrical connector

• Use a pick tool to gently lift the lock tab if needed.
• Disconnect the compressor clutch/control connector by hand (no yanking on wires).

Step 4: Disconnect A/C refrigerant lines at the compressor

• Place a drain pan under the compressor area.
• Use the correct size metric socket or line wrench to remove the suction and discharge line fasteners.
• Immediately cap/cover open lines and ports with shop rags to keep moisture out.
• Remove old O-rings with a pick tool; do not scratch the sealing surfaces.

Step 5: Remove the compressor

• Support the compressor with one hand.
• Use a metric socket and 3/8" drive ratchet to remove the compressor mounting bolts.
• Lift the compressor out carefully; it’s heavier than it looks.
• When reinstalling mounting bolts, use a 3/8" drive torque wrench and torque to Honda factory specification.

Step 6: Prep the new compressor (oil balancing)

• If the new compressor ships with oil, you must match the total system oil amount listed on the under-hood label/service info.
• Drain shipping oil into a drain pan if required and measure it (many new compressors are “overfilled” for storage).
• Add the correct type/amount of Honda-approved A/C compressor oil as needed.
• By hand, rotate the compressor hub several turns to distribute oil evenly.
• Wrong oil amount can kill the new compressor.

Step 7: Install the new compressor

• Position the compressor and start all mounting bolts by hand to avoid cross-threading.
• Tighten bolts evenly using a metric socket and 3/8" drive ratchet.
• Final tighten using a 3/8" drive torque wrench and torque to Honda factory specification.

Step 8: Install new O-rings and reconnect A/C lines

• Lightly coat new O-rings with clean Honda-approved A/C compressor oil (this helps them seat without tearing).
• Install the O-rings on the lines/ports, then reconnect the suction and discharge lines.
• Use the correct metric socket or line wrench to tighten fasteners.
• Final tighten with a 3/8" drive torque wrench and torque to Honda factory specification.

Step 9: Reinstall belt and shields

• Route the belt correctly and use the serpentine belt tool 14mm to move the tensioner.
• Slip the belt onto the last pulley and slowly release the tensioner.
• Reinstall the splash shield using a trim clip remover and Phillips screwdriver.

Step 10: Evacuate and recharge the A/C system

• Connect the A/C manifold gauge set for R-134a (specialty) to the high and low service ports.
• Connect the vacuum pump (specialty) and pull vacuum for at least 30–45 minutes.
• Close valves and verify it holds vacuum (no leak-down). If it won’t hold, stop and fix leaks.
• Recharge by weight using a refrigerant scale (specialty) with the exact amount on the under-hood label.

Step 11: Leak check and verify cooling

• Start the engine and set A/C to MAX.
• Check gauge readings and vent temperature performance.
• Use a UV dye light (specialty) to inspect fittings if dye is present/used.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Verify the compressor engages and the belt tracks smoothly (no wobble, no squeal).
• Confirm stable vent temps at idle and at 1,500–2,000 RPM.
• Recheck for oil/refrigerant residue around compressor line fittings after a short drive.
• If the old compressor failed internally (metal debris), plan for additional cleaning/parts (condenser, expansion valve, flush). Debris can destroy the new compressor.

---
