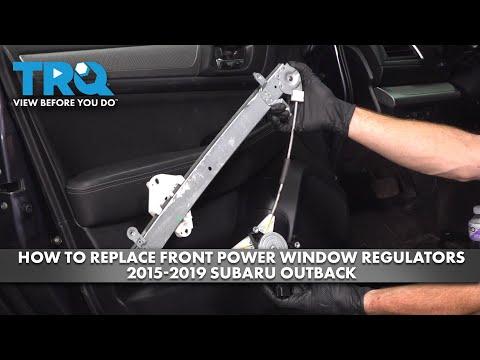

🔧 Outback - Front Window Regulator Replacement

The front window regulator is the cable-and-track assembly that moves the glass up and down inside the door. If the window slips, tilts, grinds, or won’t move (but you hear the motor), the regulator is usually worn or the cable has snapped.

Difficulty Level: Intermediate | Estimated Time: 1.5-3.0 hours (per door)

---

⚠️ Safety & Precautions

• ⚠️ Disconnect the negative battery cable before unplugging door wiring to reduce airbag/SRS risk.
• ⚠️ Support the window glass at all times; it can drop suddenly and shatter.
• ⚠️ Keep fingers clear of the regulator tracks and scissors/cable path while testing.
• ⚠️ Don’t tear the water shield (vapor barrier); leaks and wind noise can result.

---

🔧 Required Tools

You'll need the following tools for this repair:

• Safety glasses
• Mechanic gloves
• Trim removal tool set
• Phillips #2 screwdriver
• Flat plastic pry tool
• 10mm socket
• 1/4" ratchet
• 6" extension (1/4")
• Torque wrench (5–30 Nm range)
• Painter’s tape (1.5" wide)
• Pick tool
• Needle-nose pliers
• Work light

---

🔩 Required Parts

HowToo sells all the parts you need for this repair:

• Front window regulator assembly (Driver side) - Qty: 1
• Front window regulator assembly (Passenger side) - Qty: 1
• Front window regulator motor - Qty: 1 (only if not included with regulator)
• Door water shield butyl tape - Qty: 1
• Door panel clip set - Qty: 1 (recommended)

---

📋 Before You Begin

• Park on level ground and turn the ignition OFF.
• Lower the window to about halfway if it still moves (this aligns the glass bolts with the access holes).
• Use a 10mm socket to disconnect the negative battery cable, then wait 2 minutes.
• Do one door at a time.

---

🔨 Step-by-Step Instructions

Follow these steps in order:

Assumption: Regulator is the cable-type unit secured with 10mm bolts; torque values below are best-fit service ranges when exact spec varies by supplier.

Step 1: Remove the front door trim panel

• Use a trim removal tool set to pry up the window switch panel.
• Unplug the switch connectors by pressing the lock tabs with a pick tool.
• Remove the screw(s) behind the inner door handle and/or armrest using a Phillips #2 screwdriver.
• Use a trim removal tool set to pop the door panel clips around the edges.
• Lift the panel straight up to unhook it from the top ledge near the window.
• Disconnect the door handle cable(s) using a pick tool to flip the retainers (a retainer is the little clip that locks the cable in place).

Step 2: Remove the water shield (vapor barrier)

• Use a flat plastic pry tool to carefully peel the water shield back.
• Keep the butyl (sticky sealant) as clean as possible, or plan to replace it with door water shield butyl tape.

Step 3: Secure the window glass

• If the glass is still attached, position it so the clamp/bolts line up with the access holes in the door.
• Apply painter’s tape (1.5" wide) from the outside of the glass over the door frame to hold the glass up.
• Add 3–5 long strips; press firmly.

Step 4: Detach the glass from the regulator

• Through the access holes, use a 10mm socket with a 1/4" ratchet and 6" extension (1/4") to loosen/remove the glass clamp bolts.
• Once loose, gently push the glass fully up by hand and re-tape it securely.

Step 5: Unplug and remove the regulator/motor assembly

• Unplug the window motor connector using a pick tool to press the lock tab.
• Use a 10mm socket to remove the regulator mounting bolts.
• Carefully maneuver the regulator out through the large door opening.

Step 6: Transfer the motor (only if your new regulator does not include it)

• Use a 10mm socket (or the same fastener type present) to remove the motor screws/bolts from the old regulator.
• Install the motor onto the new regulator and snug the fasteners evenly.
• Torque to 6–9 Nm (53–80 in-lbs) if using small motor fasteners.

Step 7: Install the new regulator

• Feed the new regulator into the door and align the mounting holes.
• Hand-start all bolts, then tighten with a 10mm socket.
• Torque to 8–10 Nm (71–89 in-lbs) for regulator mounting bolts.
• Reconnect the motor electrical connector until it clicks.

Step 8: Reattach the glass to the regulator

• Remove some tape so the glass can lower slightly, but keep at least 2 strips holding it.
• Lower the glass carefully into the regulator clamps by hand.
• Install/tighten the clamp bolts using a 10mm socket.
• Torque to 8–10 Nm (71–89 in-lbs).

Step 9: Function test before reassembly

• Reconnect the negative battery cable using a 10mm socket.
• Temporarily plug in the window switch and cycle the window up/down while watching the glass tracks.
• If the glass tilts, stop and re-check the glass seating in the clamps and the regulator bolt alignment.
• Disconnect the negative battery cable again with a 10mm socket before final reassembly.

Step 10: Reinstall the water shield and door panel

• Press the water shield back into place; add door water shield butyl tape where sealant is missing.
• Reconnect door handle cable(s) and electrical connectors.
• Hang the door panel on the top ledge, then press the clips in around the edges.
• Reinstall screws using a Phillips #2 screwdriver.
• Snap the switch panel back in using a trim removal tool set.

---

✅ After Repair

• Reconnect the negative battery cable using a 10mm socket.
• Initialize auto up/down (if equipped): hold the window switch fully DOWN for 2 seconds after it reaches bottom, then fully UP for 2 seconds after it reaches top.
• Check for smooth operation, no clicking, and that the glass seals evenly at the top.
• Verify the door lock, mirror, and speaker functions before you consider it done.

---

💰 DIY vs Shop Cost

Shop Cost: $350-$750 (per front door, parts + labor)

DIY Cost: $90-$250 (per front door, parts only)

You Save: $260-$500 by doing it yourself!

Shop labor rates vary but typically run $100-$150/hour. This repair takes a shop approximately 1.5-3.0 hours.

---
